Customizable Design

The customizable design allows you to tailor the solar panel to your specific requirements, enhancing its versatility.

No High-Concerned Chemicals

Built without high-concerned chemicals, this solar panel offers a safe and eco-friendly energy solution.

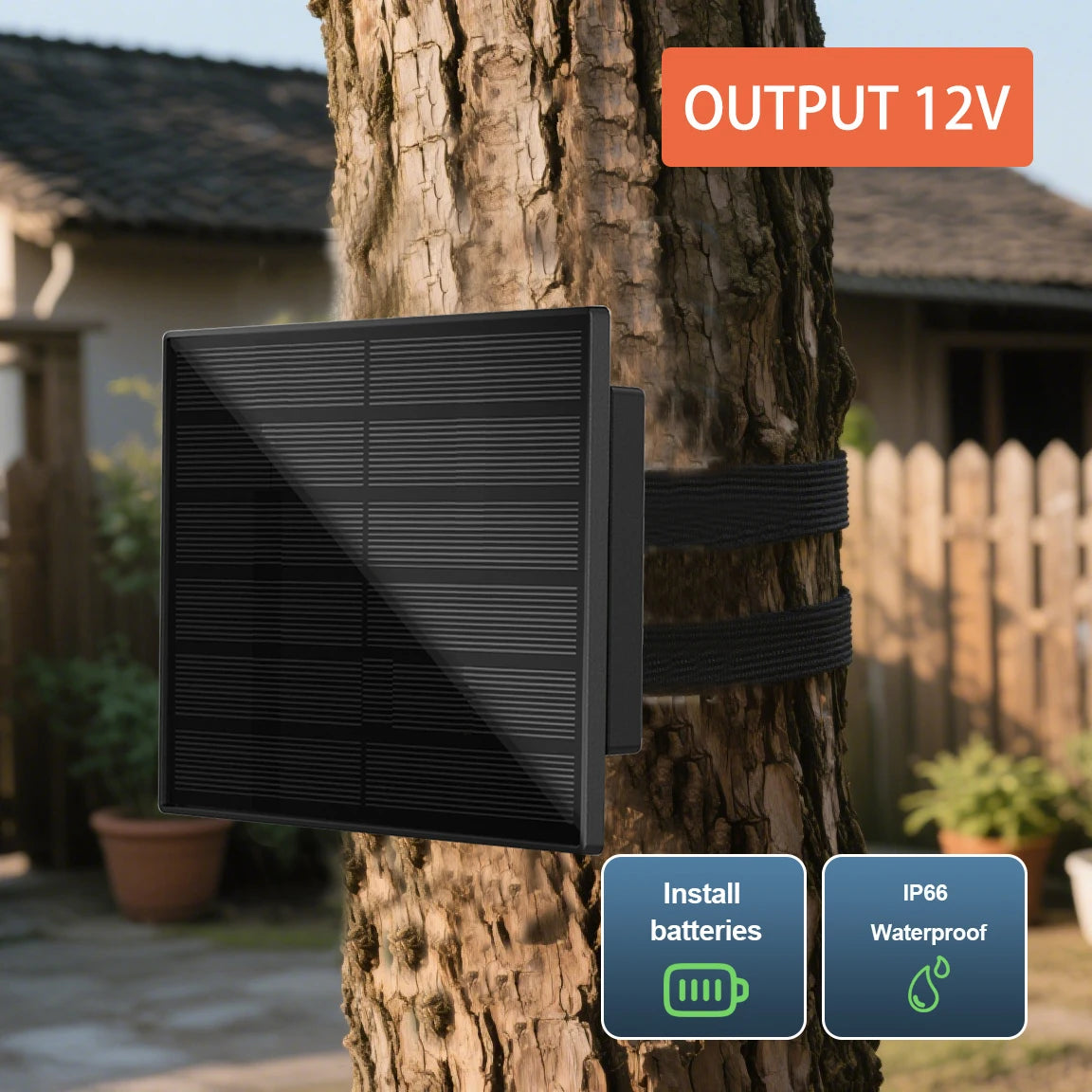

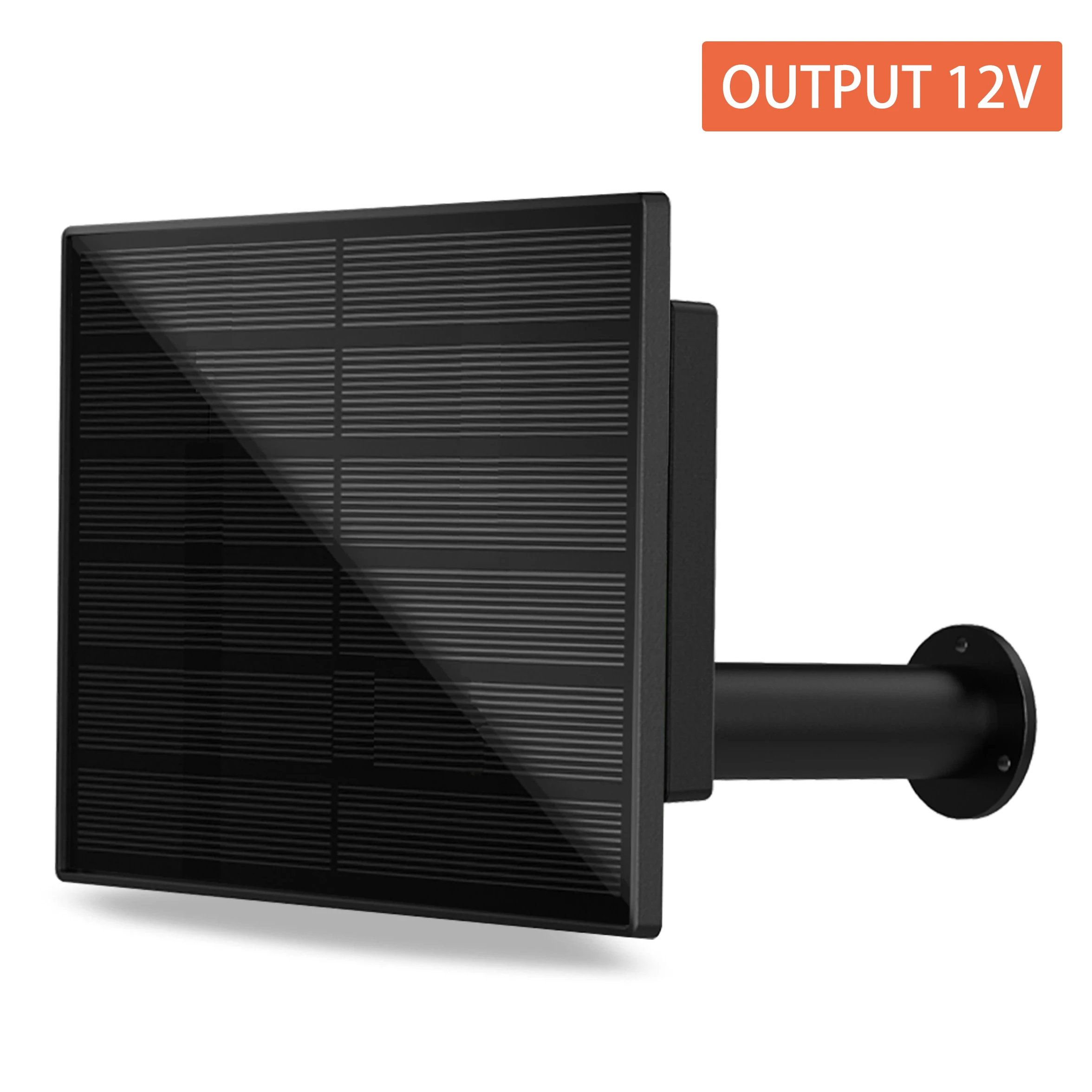

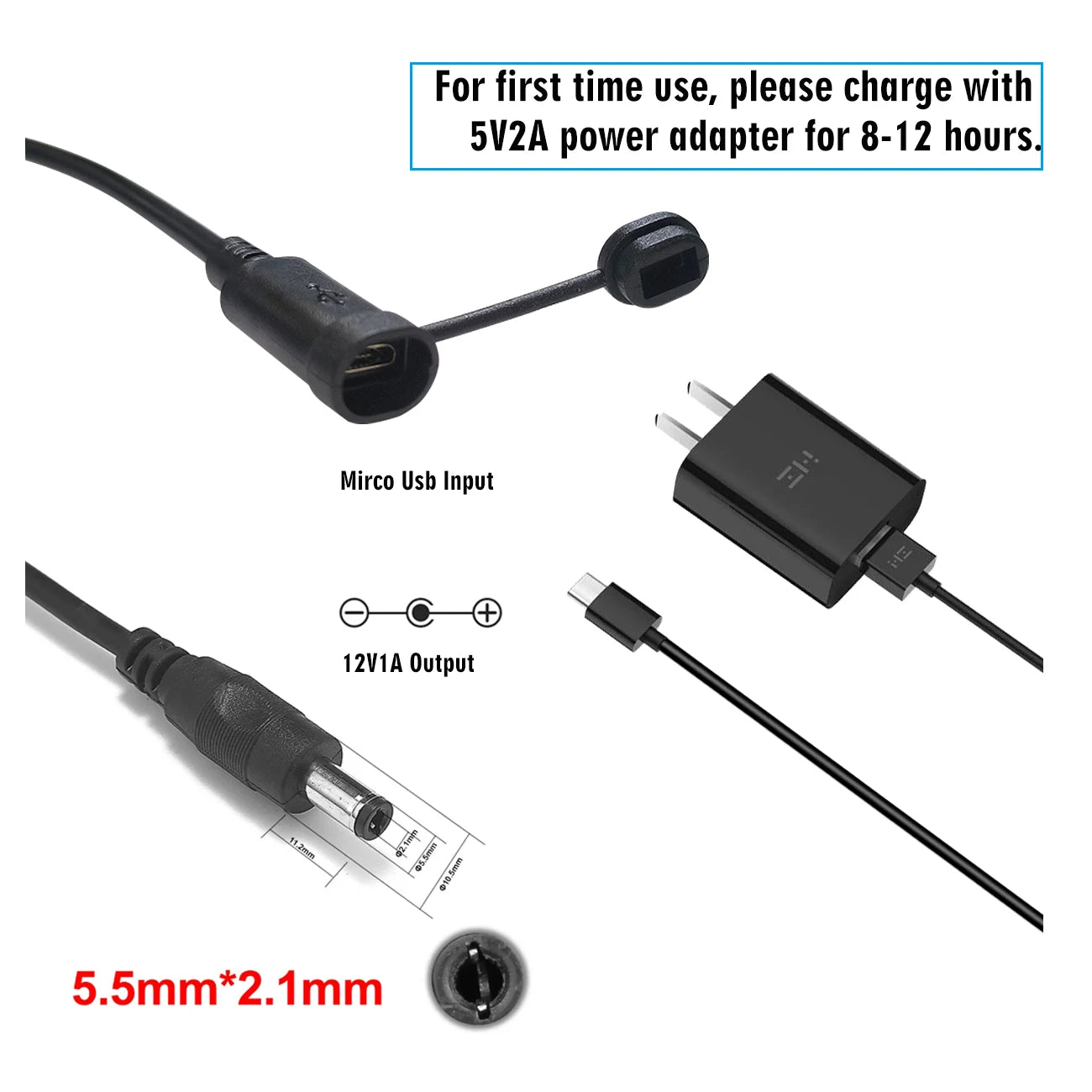

12V Output Voltage

Delivering a stable 12V output, this solar panel is ideal for charging 18650 batteries, providing reliable power for your devices.

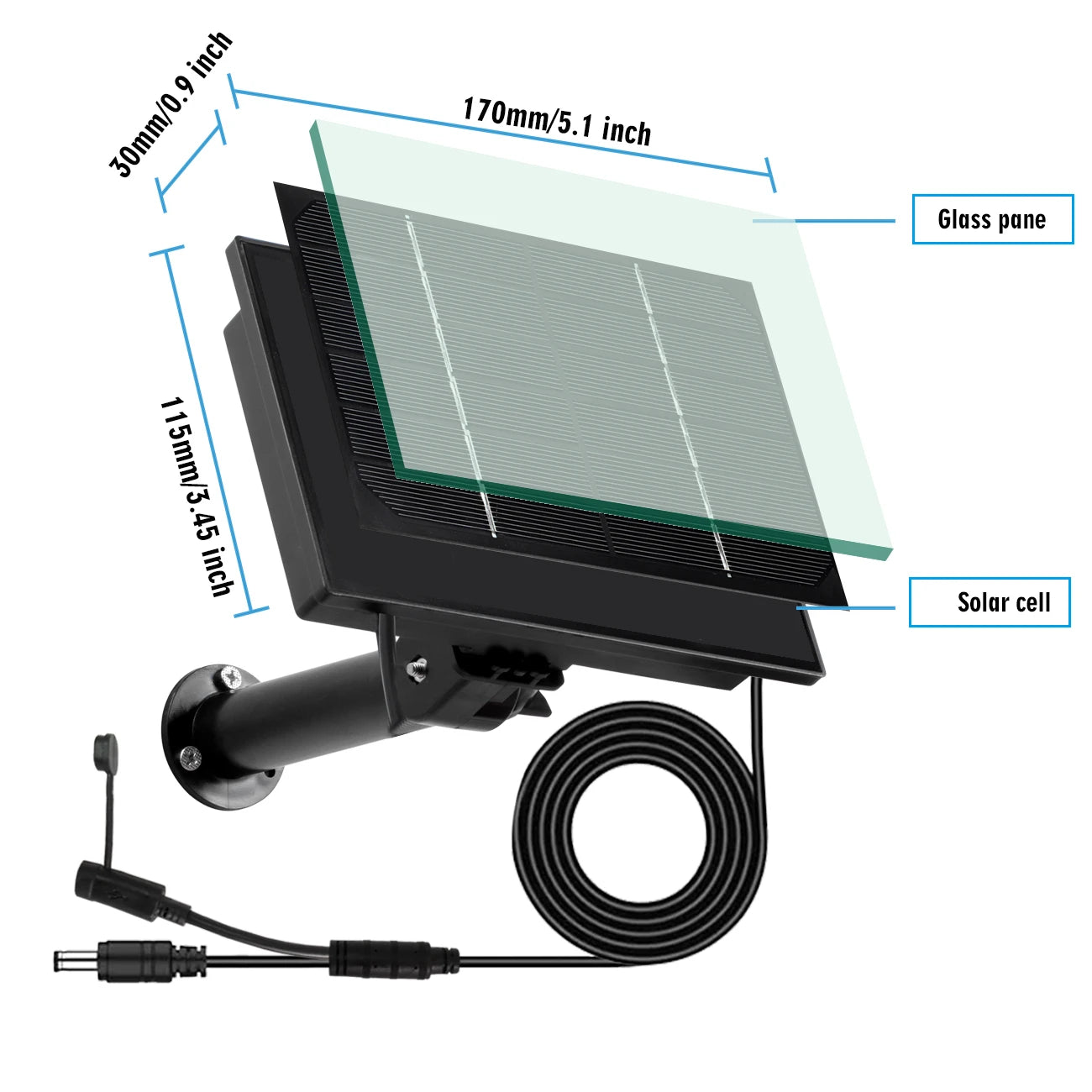

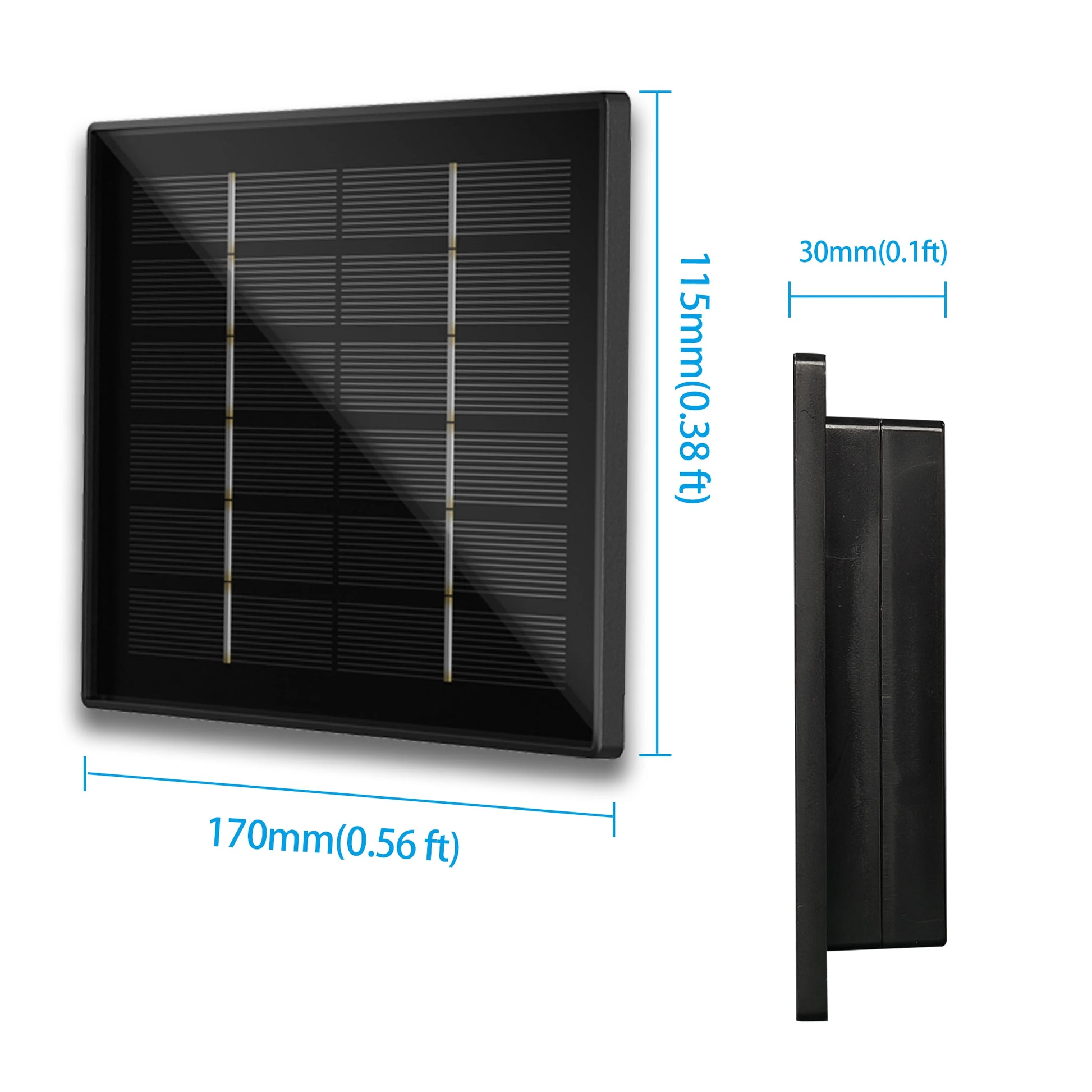

Mini Size

Its compact mini size makes it easy to install and transport, ideal for various applications such as festival lights and hunting cameras.

Waterproof IP66 Rating

With an IP66 waterproof rating, this solar panel is designed to withstand harsh weather conditions, making it perfect for outdoor use.

NOTE:All options do not include batteries.

Output Power Test Video

The maximum power peak is around 10W for continuous operation. It is recommended not to exceed 6-8W during operation.

Output Current

Option 1: Maintain a 12V output at all times until the battery is depleted.

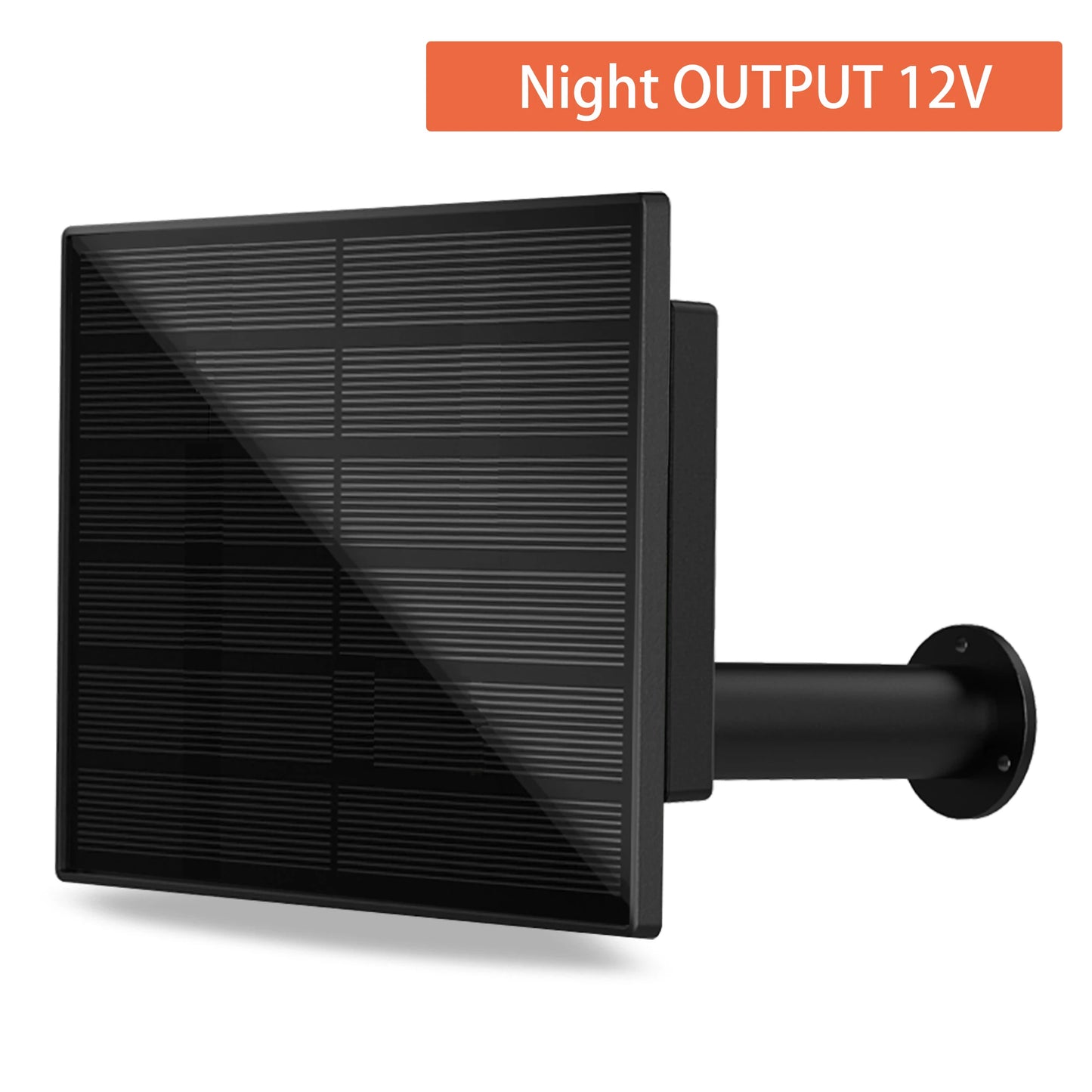

Option 2:Output is turned on at night and turned off during the day.
Option 3:Output is turned on during the day and turned off at night.

Batteries not included!!!If you can't buy 18650 batteries, do not purchase this product! Do not purchase it!!!

FAQ

Q: Is the battery included?
A: Panel has 6 battery slots, you can choose you need.
Q: Use environment temperature
A：-10°-50°
Q：How to choose a battery?
A：Supports all 18650 batteries.
Q：Is there a requirement for battery capacity?
A：No limitations, high capacity, long charging time.
Q：How are the panels installed?
A：Please install the panel in a location with greater than 5 hours/day of sunlight.

Device Power

Since the panel generates relatively little power, if it provides power for high-power devices, the rate at which the devices consume power is much greater than the rate at which the panel is charged.
If you need to work 7X24 hours, please keep your device power and working current less than the following reference values.
Device: power 0.45W

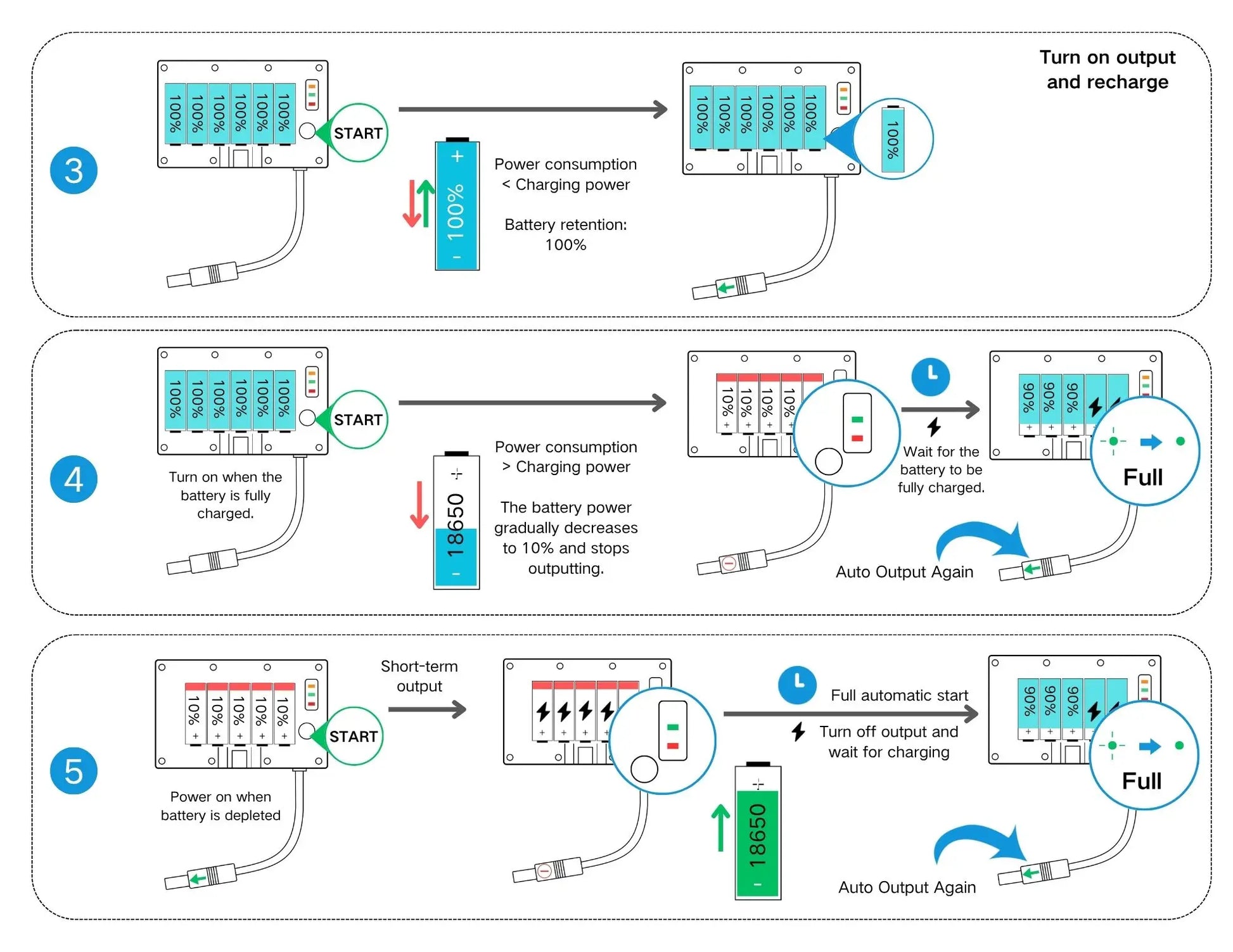

Working State 3

When the power consumption of your device is less than the power generated by the solar panel, the electricity charged by the panel every day is completely sufficient for the device's consumption. The battery power will remain stable, enabling 7x24-hour operation.

Working State 4

When the power consumption of your device is greater than the power generated by the solar panel, the battery power will gradually decrease until it reaches around 10% (3.4-3.5V), at which point the output will stop. At this time, the solar panel will wait for the battery to be charged, which may take 14-16 hours. Once the battery is recharged to 90% (4V), the solar panel will automatically resume output.

Many customers in this situation report that the device is not outputting power and is malfunctioning. Please do not panic. Wait for it to charge, and it will turn on automatically. At this point, patience is required. If charging in sunlight, it will take approximately 15 hours.

Working State 5

When the battery power is already low and you restart the solar panel, it will default to outputting power. However, because the battery itself does not have enough power, the MCU will detect the low battery level and stop the power output again. In this case, you need to wait for the solar energy to charge the battery. When the battery level reaches 90% (4V) again, the system will automatically turn on the output once more.

Applicable Devices

This solar panel can power hunting cameras, low-power cameras for up to 365 days. It can also charge cell phones, outdoor small power products.

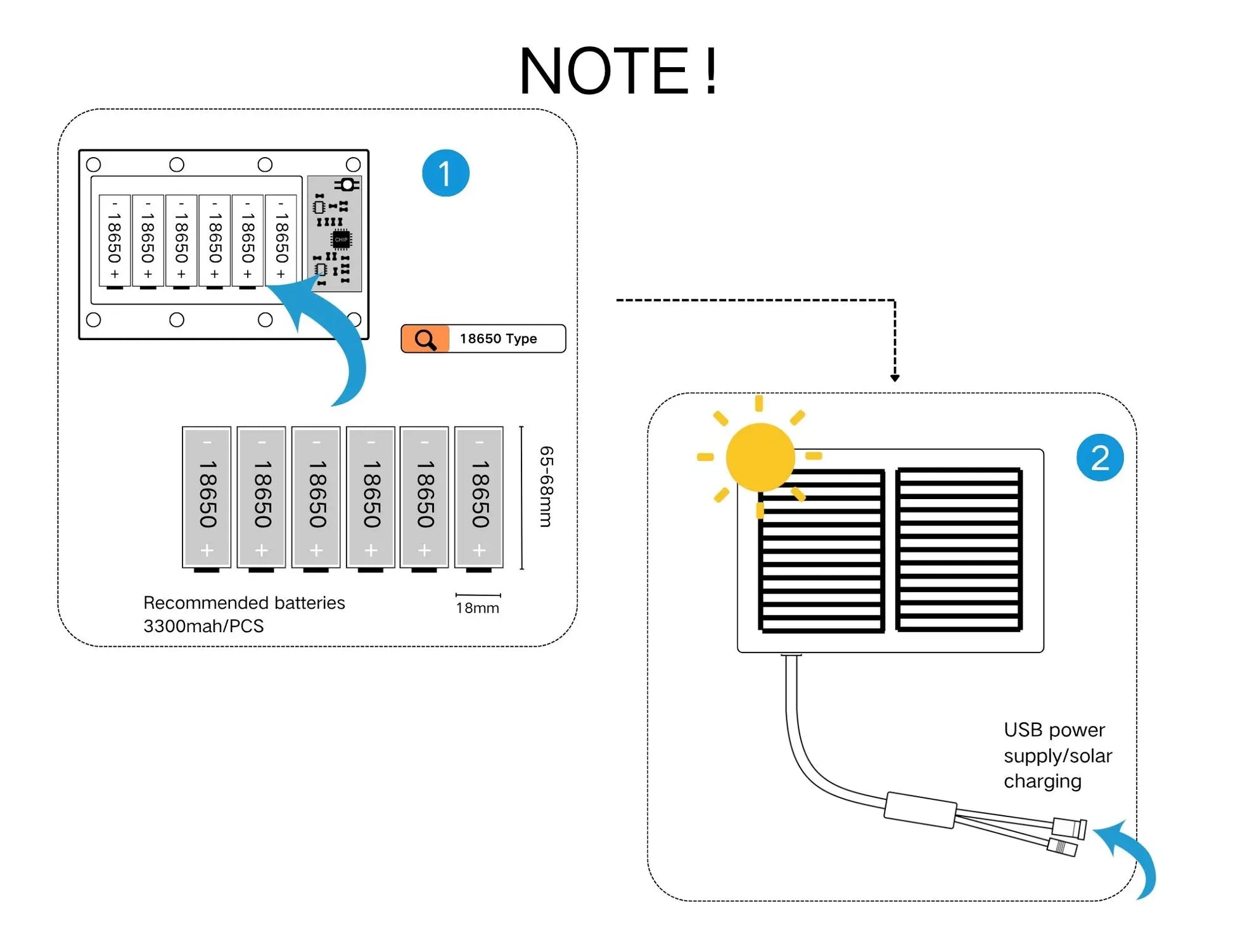

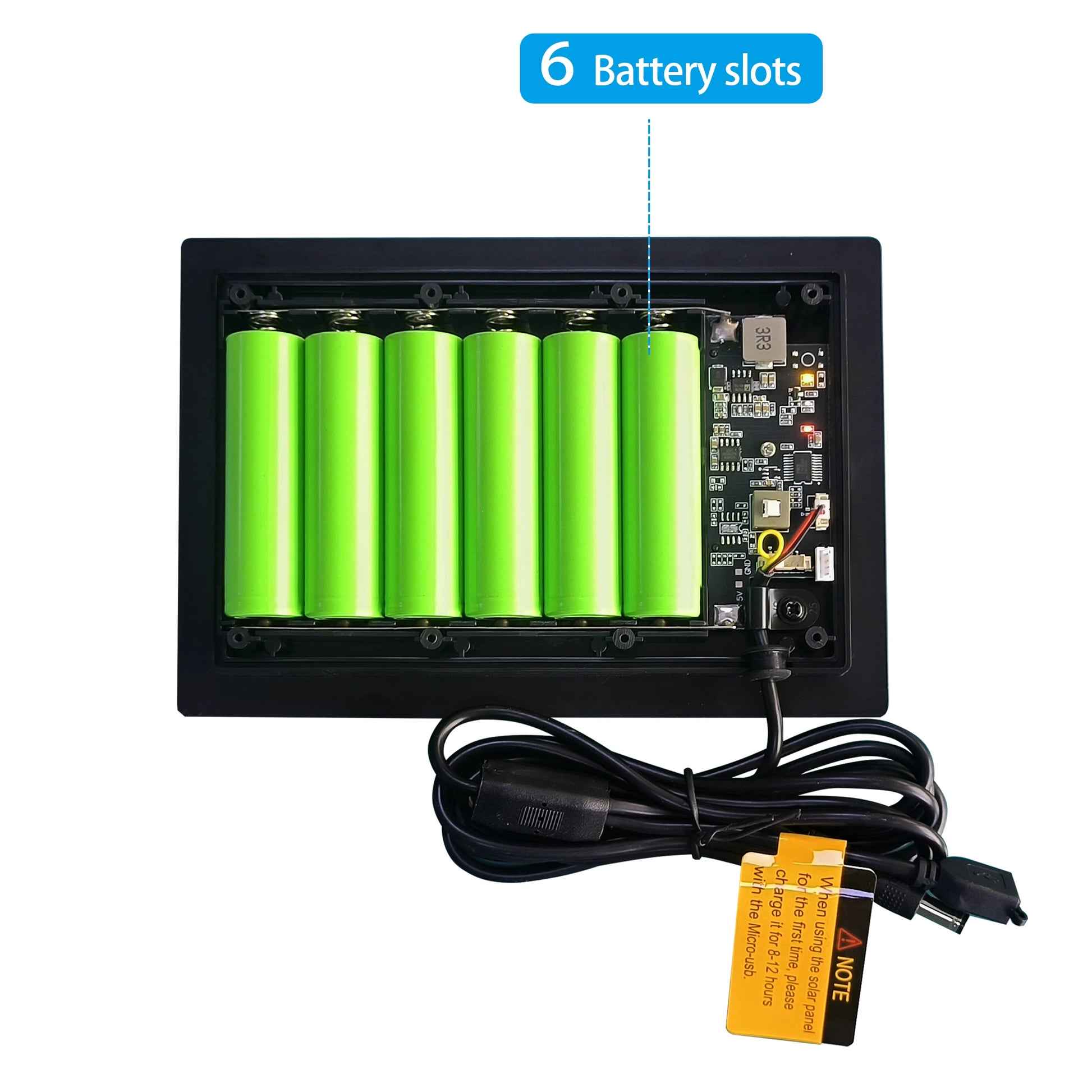

The panel can accommodate up to 6 batteries. This link does not include batteries.

Batteries not included!!!If you can't buy 18650 batteries, do not purchase this product! Do not purchase it!!!

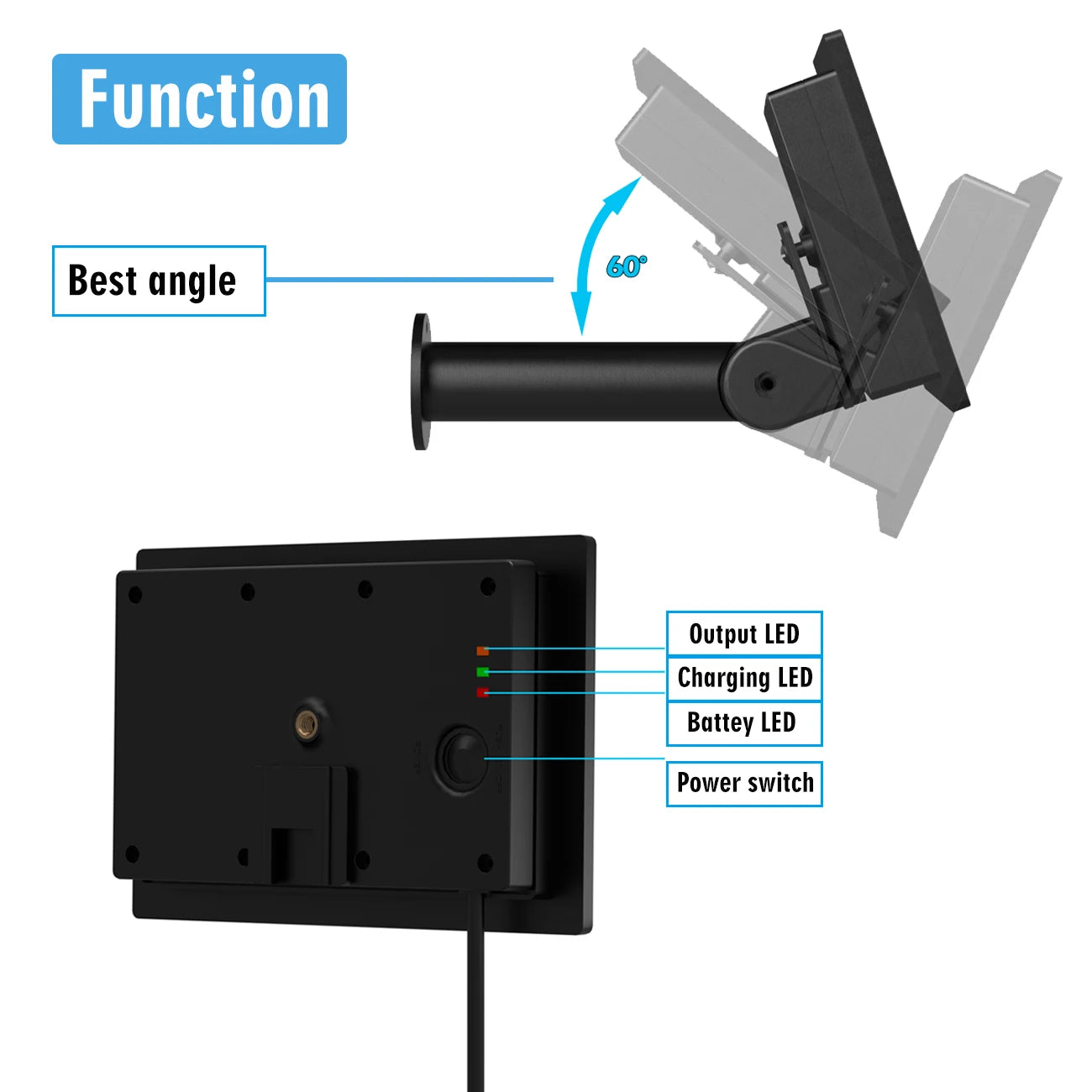

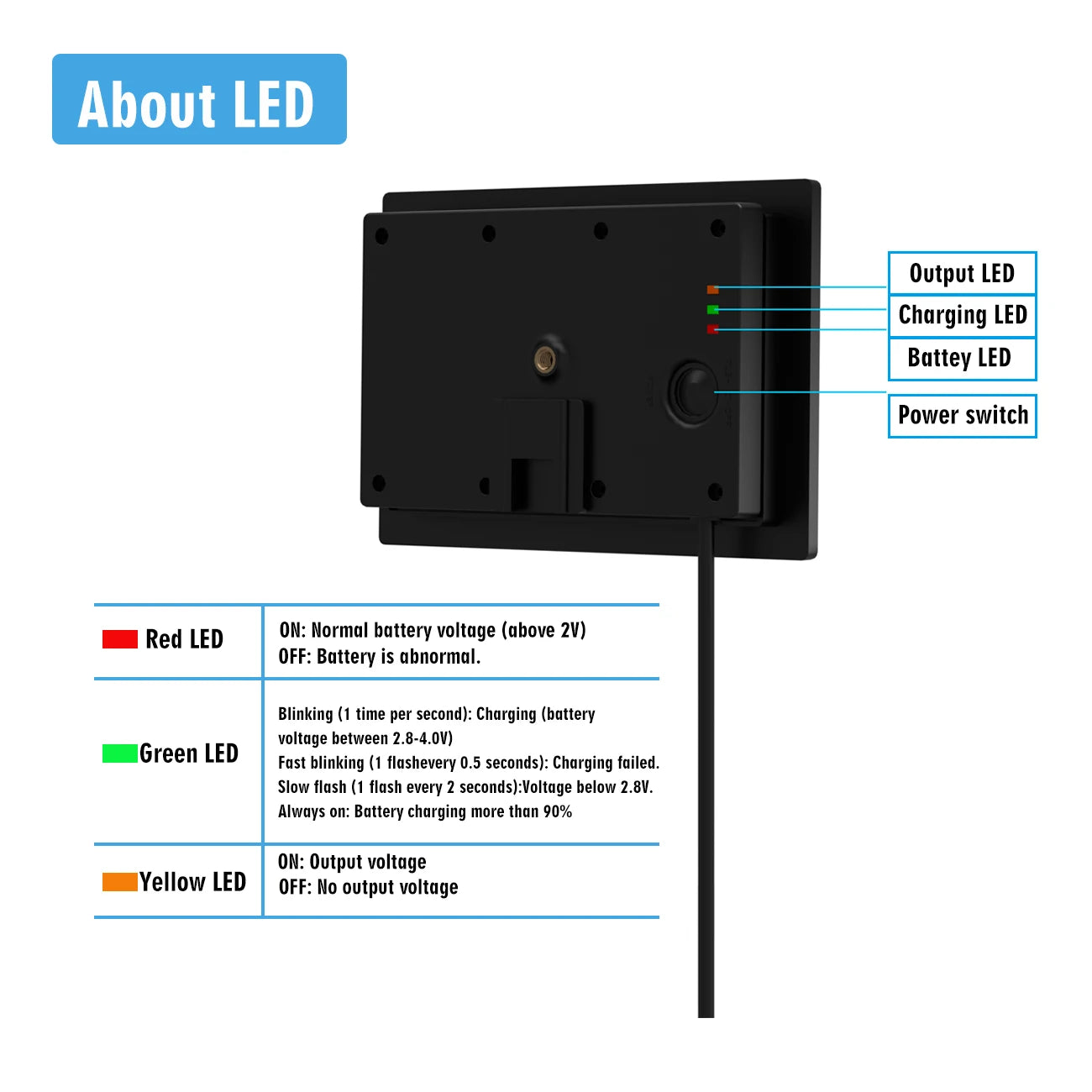

LED

Red light：
On: The battery voltage is normal (above 2V)
Off: The battery is abnormal.

Green light
Flashing green light: Charging in progress (battery voltage between 3.4-4.0V)
Green light off and red light on: Not charging.
Green light off and red light off: Low voltage charging in progress, with battery voltage nearly 0V. The light will automatically start flashing when the voltage reaches above 3.5V again.
Green light off and red light dim: Low-voltage charging in progress, with battery voltage below 2V. The light will automatically start flashing when the voltage reaches above 3.5V again.
Green light steady on: Battery charge at 90%, with voltage above 4.0V.

Orange light
On: there is output voltage
Off: No output voltage

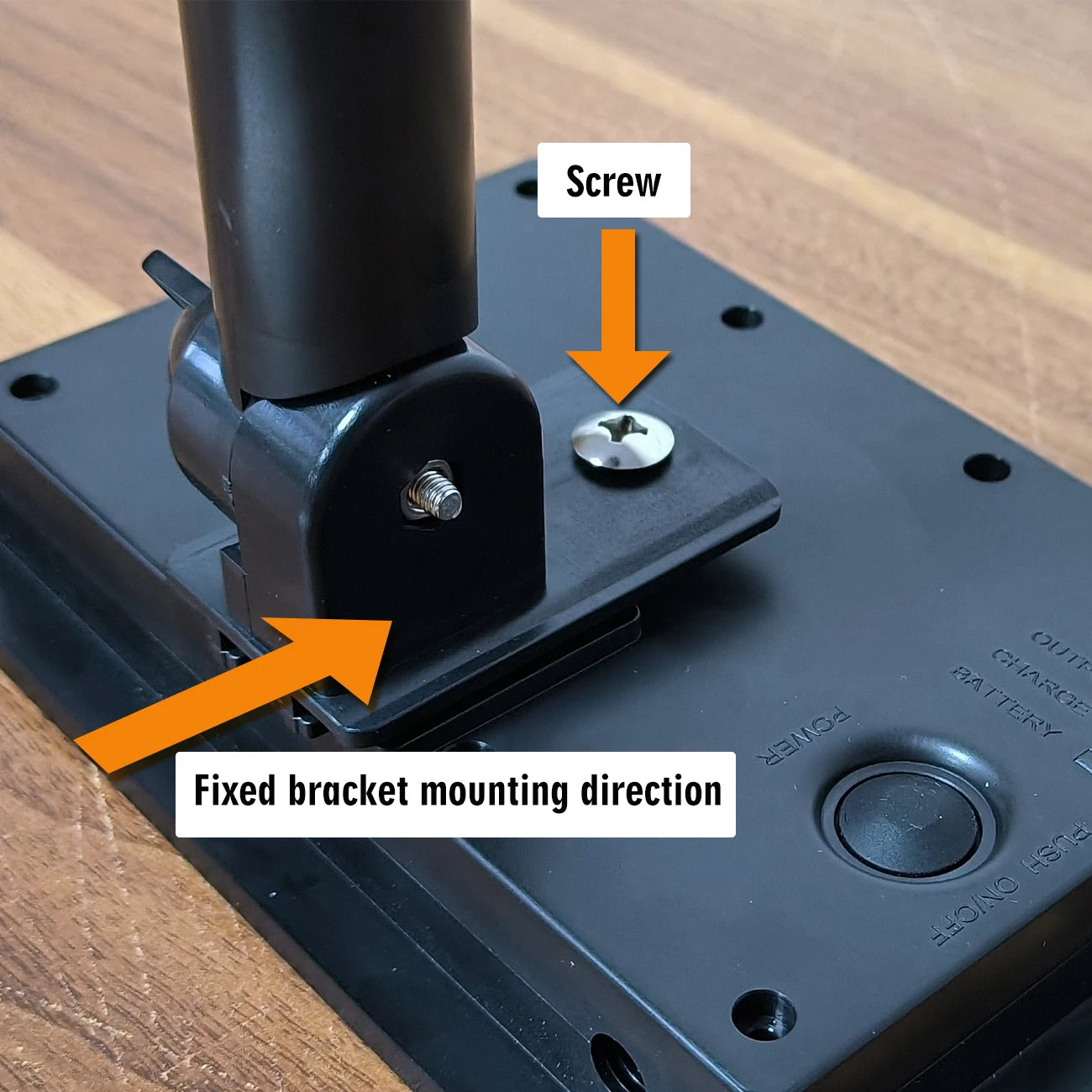

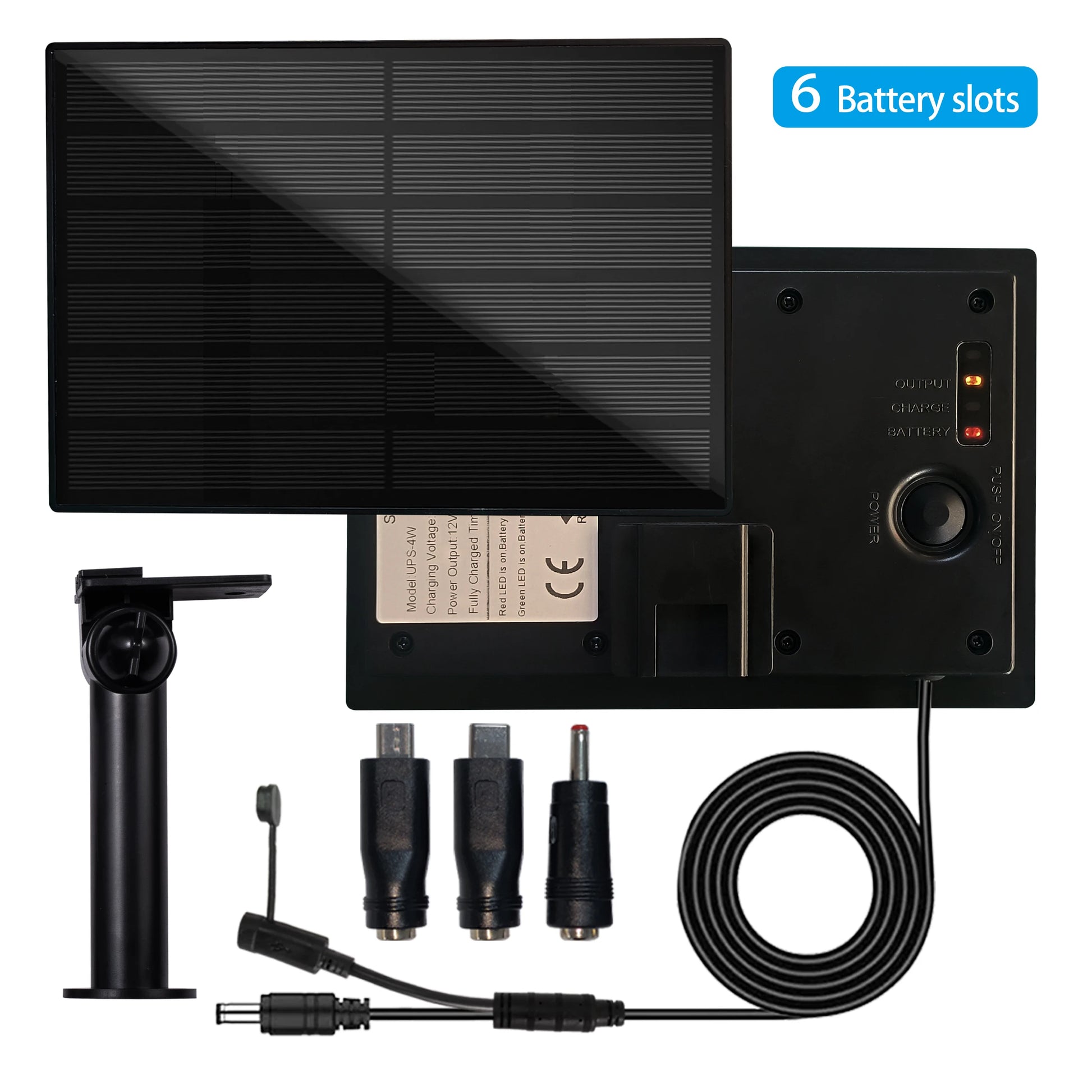

Easy installation

When fixing the bracket, adjust the mounting angle as required.

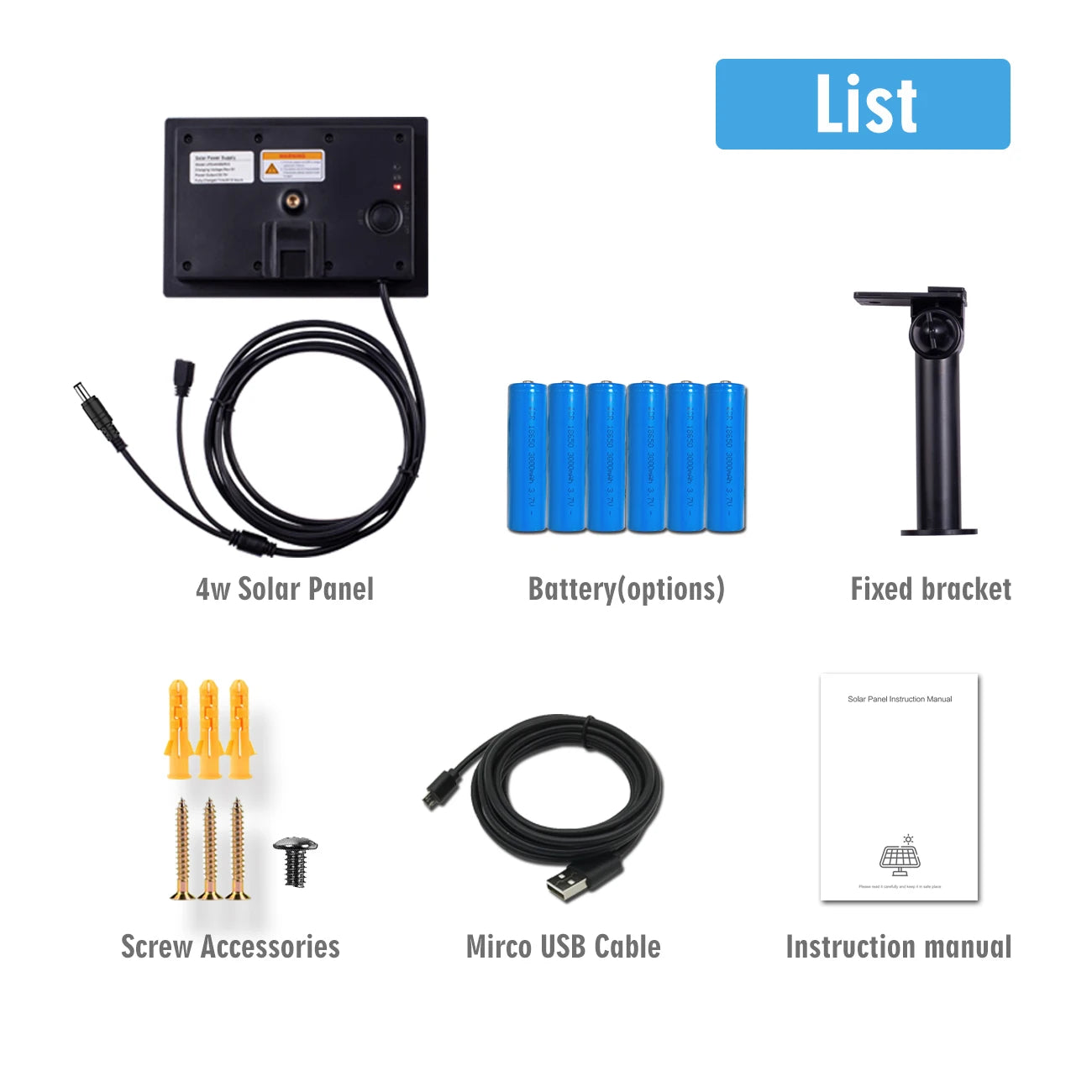

Packing List

Solar Panel 1PCS
Fixed bracket 1PCS
Screws 1PCS
Instruction manual 1PCS
Screw accessory package 1 package
Battery needs to be purchased by yourself
